YY-7304 Slim Desktop |
 PC
Cases > Slim Desktop Cases > YY-7304 |
|
YY-7304
|
|
 |
- Compact
11.35L
- Screwless
Designed with quick fasteners, make system assembly
easy and quick.
- Standard
Allow standard sized devices
- Cable planning
-
| The reserved cable tunnel
may hide cable mess and promote the efficiency
of system assembly and thermal ability

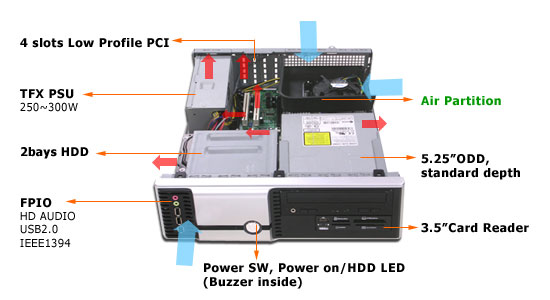

Quiet / Optimum Thermal Efficiency |
|
-
|
All New Air Flow Design
- Partition air guide, more efficiency,
not only for Core area, but also for devices
and add-on-cards |
|
-
|
Not only for Core 2 Duo
(65W) today, but also for Quad Core generation
(95W/105W) tomorrow |
- Review:
Casecenter
|
|
 |
| Case
dimension |
333mm W x 388mm D x 96mm H |
| Motherboard
configuration |
Micro
ATX (9.6" x 9.6"), DTX |
| Drive
configuration |
1 - 5.25" exposed for standard ODD
(180mm max. depth)
1 - 3.5" exposed for card reader
only (120mm max. depth)
2 - 3.5" hidden for standard HDD
|
| Slots |
4
slots Low Profile PCI slots |
| Net
Weight |
3.0kgs/6.6 lbs without PSU |
| Optional
Power Supply |
Standard TFX form factor 250W
PSU |
| Option |
Intrusion Switch, Card
Reader,
6cm fan |
|
| |
 |
|
|
|
|
|
|
|

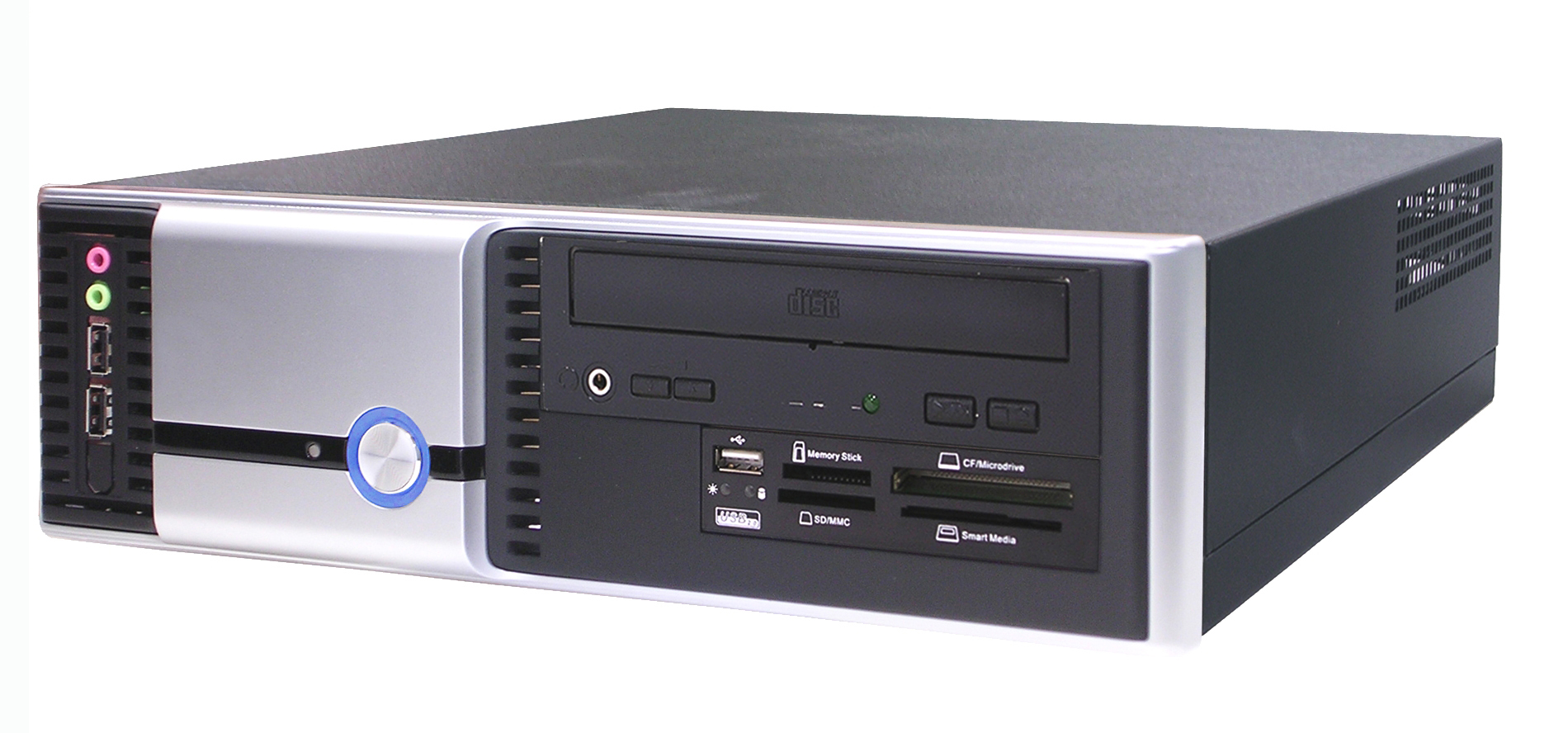

YY-7304 (Desktop)
Standard
|
Rear Side
|
B-Type (Desktop)
|
Top View
|
|
|
|
|
|
|
Without Front Panel
|
Fan
|
Inside
|
Screwless-add on cards
|
|
|
|
|
|
|
Optional: Kensington
Hole, Padlock Bracket, Intrusion Switch |
HDD
|
ODD
|
Spare Parts |
|
|
|
|
