GA-L01 Serener Mini ITX
Fanless |
 PC
Cases > Mini ITX Cases > GA-L01 |
|
 |
- Grace outline, fanless operation, ideal for
HTPC and Media Center PCs
- Steel Chassis, Aluminium Front
- No Heatpipe
- Passive cooling technology is applied with
optimizing heat-dissipation area to control
system temperature
- Fit a wide range of Mini-ITX main boards
|
|
| Case
dimension |
370mm
W x 332.2mm D x 53.4mm H |
Motherboard
configuration
|
Via
Epia M/ML/MII/SP, EN, CN, Intel PWI-8552,
Epox 4MTS6B, Commel LV-675, Intel D945GCLF |
Drive
configuration
|
1 x Slim CDR
2 x 3.5" HDD (1 regular height and
1 low profile)
|
| PCI
Riser Card |
2
x PCI slot (PCI card length limit 5.9"/15cm) |
| Front
/ Back Access |
Power
Button, Slimline CD/DVD drive, 2 x USB 2.0,
2 x IEEE1394 |
| Connections |
2
x USB + 2x 1394 (all at the back panel) |
| Power
Supply |
Built-in
DC-DC board 19V, 120W,
GP-85 |
Net
Weight / Gross Weight
|
4.3kg
/ 5kg |
|
Heatpipe Options |
HP50, See Heatpipe List |
|
| |
 |
|
|
|
|
|
|
Front Side
|
Rear Side
|
Rear Side Open
|
Slim CD/DVD Drive
|
|
|
|
|
|
|
Cables
|
Riser Card
|

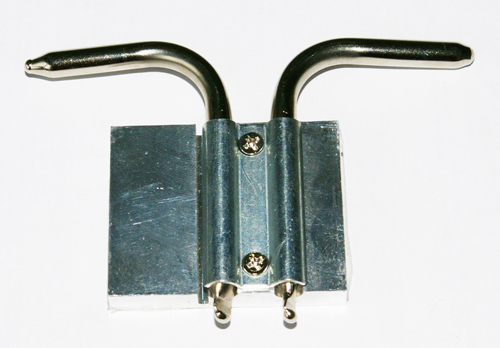

HP50 for Intel
D201GLY
|
Spare Parts
|
|
|
|
|
|
