RM24200
Chenbro 19"/2U Rackmount |
 Rackmount
Cases > RM24200 |
|
RM24200
|
|
 |
- Chenbro RM24200 19"/2U
Rackmount
- 4 Low Profile Slots
- 2x USB
- Power ON/OFF, System Reset
- LEDs for Power ON/OFF, HDD Activity, LAN
|
 |
| Case
dimension |
430mm W x
457.2mm D x 88.1mm H |
| Motherboard
configuration |
Micro ATX
(Max. 9.6" x 9.6") |
| Drive
configuration |
1 - Slim ODD
2 - 3.5" HDD
2 - 3.5" Trays
|
| System
cooling fans |
1x (80mm
= 42.5CFM ea.) |
| Gross
Weight |
9.3kgs |
| Optional
Power Supply |
PS2 8cm Fan (Rear) |
| Optional
Kits |
Telescopic
Sliders |
|
| |
 |
|
|
|
|
|
|

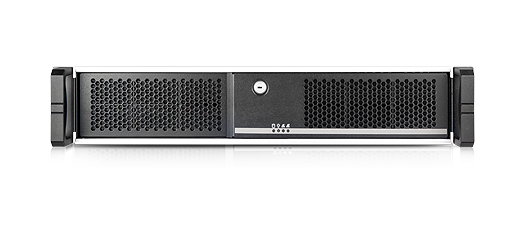

Front Side
|
Top View
|

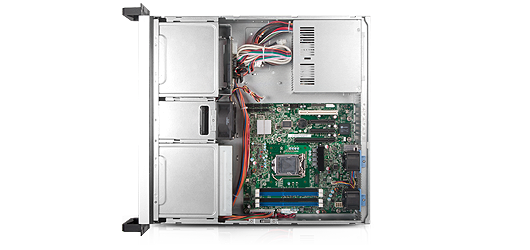

Inside
|

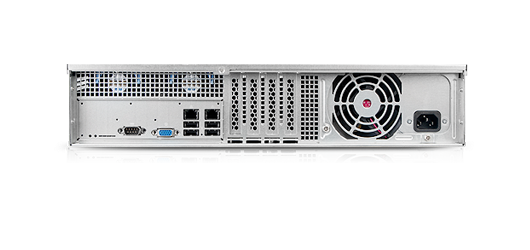

Rear Side
|
|
|
|
|
|
