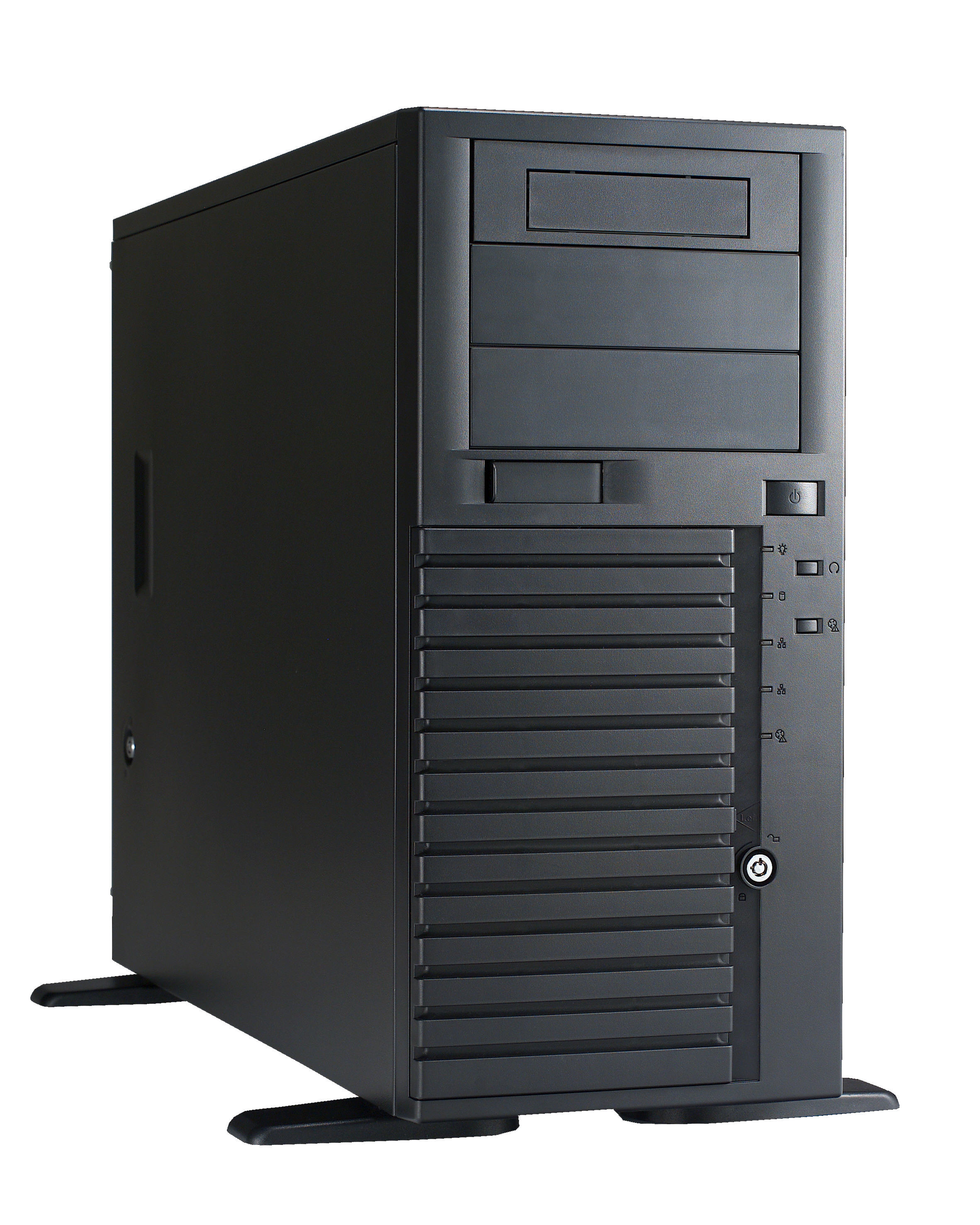

SR10569
|
General Purpose Server Chassis
|
|
|
|
|
- Support up to 12"x13" M/B
- 3.5" 4-Bay HDD cages with 6Gb/s SATA or mini-SAS backplane
- Tool-less installation on bezel, HDD cage, side cover and fans
- Rackable by slide rail- SR10566
|
|
Case dimension |
198mm W x 533mm D x 425mm H |
Motherboard configuration |
ATX / Extended ATX, EEB |
Processor |
Intel / AMD DP Quad |
Security |
Intrusion Switch, Kensington Lock, Keylock on front door |
Drive configuration |
3 - 5.25" exposed
4 - 3.5" HDD Cage (Optional)
|
Metal Material |
SECC |
Plastic Material Type |
ABS-HB |
Metal Thickness |
0.8mm |
System cooling fans |
1 x 12cm PWM for rear-mounted (built-in)
1 x
8 or 9cm fan for front-mounted |
Expansion Slot |
7 (5 x full length + 2 x half length) |
Front Panel |
Power On/Off, System Reset, Alarm Mute, Power LED,
1 x HDD Activity, 2 x LAN Activity LED, 1 x Event Warning, 2 x USB 2.0 |
Net Weight/Gross Weight |
9kg/11.0kg |
Optional Power Supply |
450-1000W (PS/2) or
MRW-5450V (Mini Redundant) |
Optional Kits |
84H220910-062 (HDD Cage, 3.5" 4-Bay, Non-Hotswap),
84H220910-078 (HDD Cage, 3.5" 4-Bay, w/6Gb/s Mini-SAS)
84H220910-079 (HDD Cage, 3.5" 4-Bay, w/6Gb/s SATA ),
SK33502 (3 x ODD bays to 5 x 3.5" hot-swap HDD bays),
SK32303 (2 x ODD bays to 3 x 3.5" hot-swap HDD bays), SR84H210510-004 Rackmount Griffe,
26" Sliding Rail |
|
|
|
|
|
|
|
|
SR10569
|
Front Side
|
Rear Side
|
Side View
|
|
|
|
|
Front Side with HDD Cage
|
Screwless Card Retaine
|
120mm PWM fan
|
Removable HDD Cage
|
|
|
|
