SF-550P14PE
|

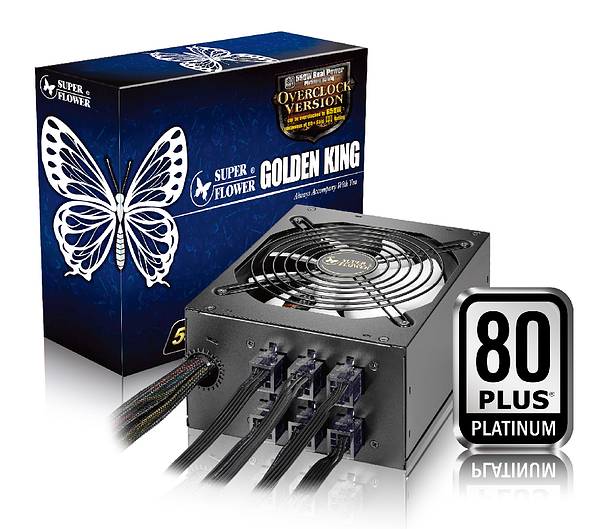

Super Flower Golden King Platinum
|
|
- Compliance with ATX 12V v2.2, EPS 12V v2.91 and SSI EPS 12V v2.92 Specification.
- Support all Intel and AMD Multi-Core CPU and its compatible Motherboards, ATX compliant.
- Fit in with U.S.A Energy Star standards/ EuP(Energy-using Products) instructions : energy consumption during shut off status less than 1W.
- Over Power Protection / Under Power Protection / Over Voltage Protection / Short Circuit Protection.
- Passed 80 PLUSŪ Platinum Certification, on 20% 50% 100% loading, with 90% 92% 89% Efficiency.
- Three Exclusive Patents (Taiwan, China, U.S.A, Germany, Japan patent applied)
1.ECO
Intelligent Thermal Control System
2.Hybrid Dual Voltage Automatic Switch System
3.High Power Vertical Double Layer Main
Transformer(China Patent no:ZL2009 2 0273193.2 ;
Taiwan Patent no:M381155 )
- More than 2,000 Times ON / OFF Test.
- Full Range Design from 100V ~ 250V. (Active PFC).
- Support NVIDIA (SLI)/ATI, high rank & high efficiency graphic card.

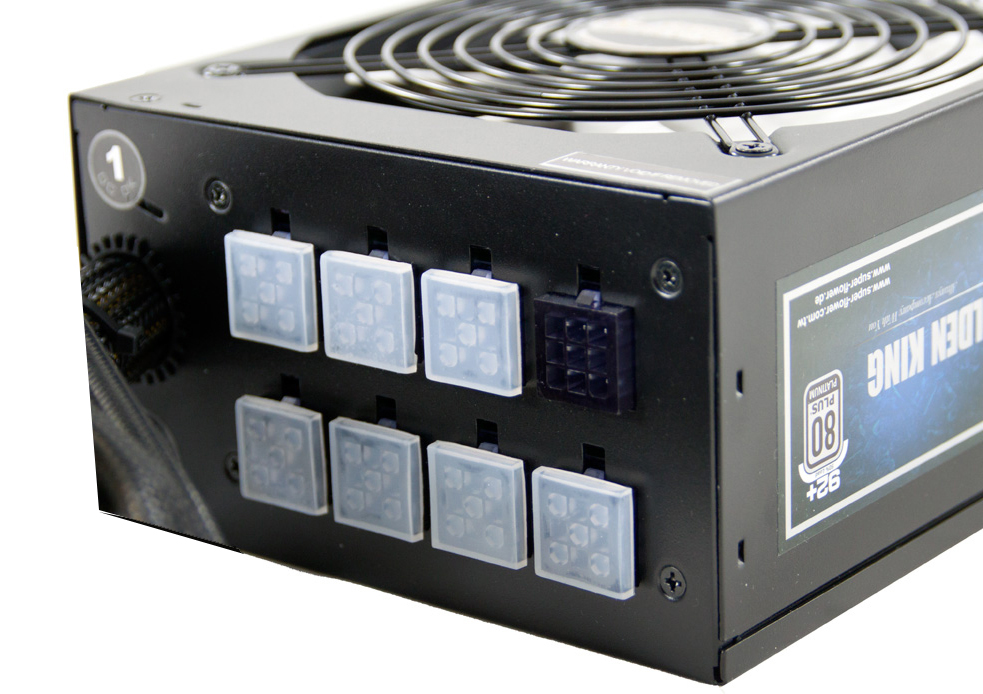

- Patent easy plug-in design, safe and firmly attached once connected.
- 550W Active PFC
- 14cm Silent Blue LED Fan with temperature
control
- Dimensions : 150mm W x 180mm D x 86mm H
- Press:
Hardware-Academy (German),
Jonnyguru,
XSReviews (English),
Cowcotland,
PC Update - Hardware Magazine,
Syndrome-OC (French),
Inside Hardware,
Recensionivere (Italian),
Cool PC,
PC Pop (Chinese),
Playwares (Korean),
Hardware.no (Norwegian),
Chip.ro,
Lab501,
Techzone (Romanian),
pc.sk
(Slovakian),
Profesional Review (Spanish)
- TV:
Cowcotland (French)
|
|
|
|
|
|
|

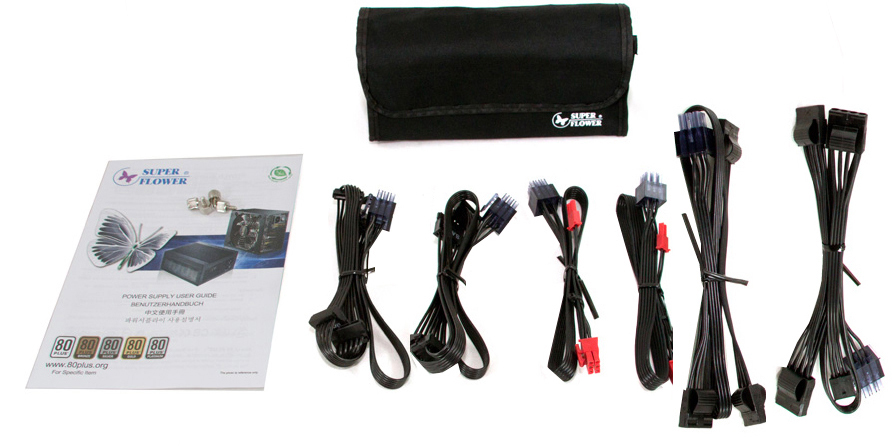

1 x 20/24PIN
|
1 x 8 PIN (4+4)
|
2 x 6 PIN PCI-E
|
8 x SATA
|
|
|
| |
5 x Molex
|
1 x Floppy
|
2 x 8 PIN (6+2)
| |
|
|
Transform Efficiency: On 20% 50% 100%
loading, with 91% 92% 90% Transform Efficiency

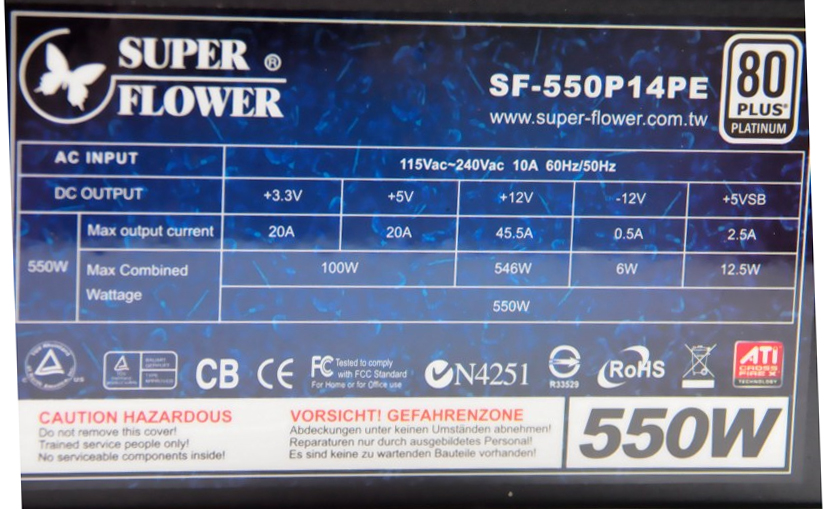

AC Input: 115Vac~ 240Vac 10A 60HZ/50Hz
Intel Power Design Guide: EPS Ver. 2.92
Outlook: Honeycomb ventilation panel,
high efficiency air flow design
|
VOLTAGE |
+3.3V
|
+5V
|
+12V1
|
-12V
|
+5Vsb
|
MAX. LOAD |
20.0A
|
20.0A
|
45.5A
|
0.5A
|
2.5A
|
Remarks:
* The total output for +5V and +3.3V is limited
to under 100W.
* Peak to 650W.
|
|
|
BSMI R33529 / CE / FCC / CUL / cTUVus / CB
|
|
|
|
|
